PF0570

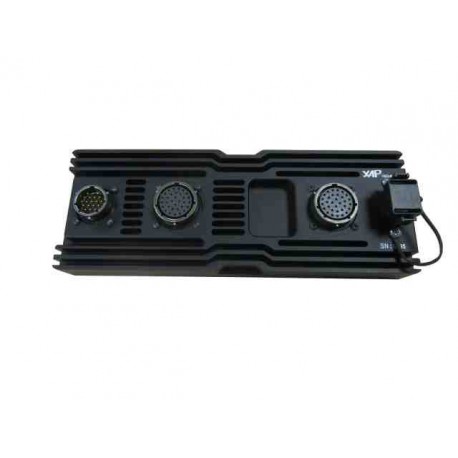

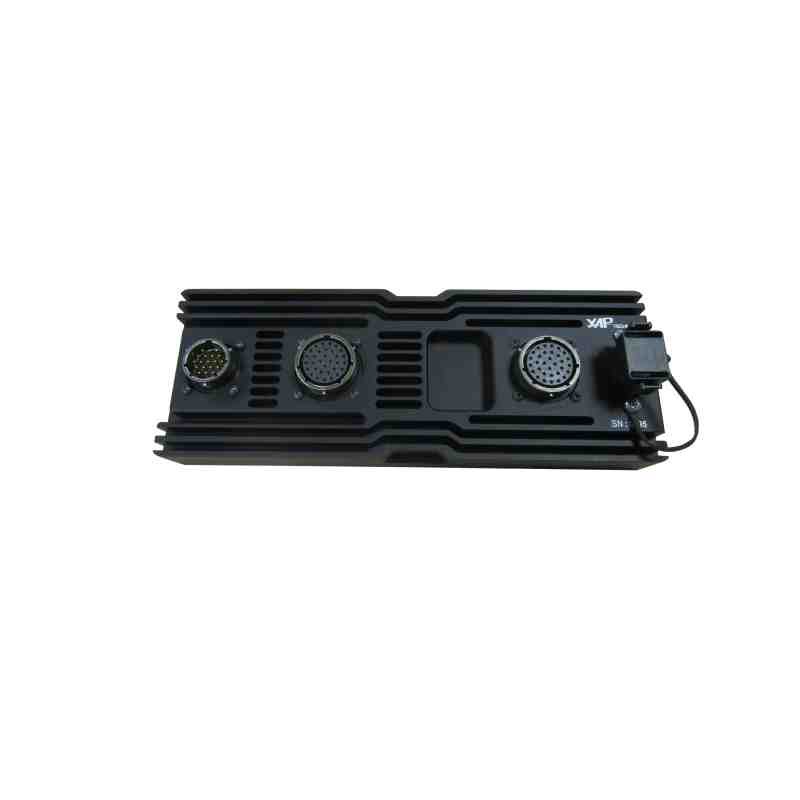

The new RTCM range of XAP electronic protection integrate the
latest generation of high performance power transistors. They
are used to replace fuses and relay* preserving flexiblity and the
specificity of a custom system
They allow individual protection of each output thanks to configurable
current thresholds defined by user with XAP software :
RTCM conf (provided).
The new RTCM range of XAP electronic protection integrate the
latest generation of high performance power transistors. They
are used to replace fuses and relay* preserving flexiblity and the
specificity of a custom system
They allow individual protection of each output thanks to configurable
current thresholds defined by user with XAP software :
RTCM conf (provided).
Electronic equipment of your vehicle is perfectly protected.
XAP electronic powerbox are plug and play compatible with
our data loggers, dashboard, multiplexed keypads and steering
wheels.
RTCM network can be done. Mutiple RTCM can communicate by
CAN bus in master/slaves mode or independent mode.
TECHNICAL SPECIFICATIONS
OUTPUT HP From 15 to 50 A (8 thresholds)
• RTCM–231 : 11
OUTPUT MP From 7.5 to 25 A (8 thresholds)
• RTCM-231 : 22
Programmable delay monitoring From 0.15 to 155mS (4 thresholds) for each MP & HP output
Communication protocols
• CAN : 1
• LIN : 1
• USB : 1
Main battery relay management
• RTCM-231 : YES
Digital inputs
• RTCM-231 : 10
Analog inputs
• RTCM-231 : 1 (0-5V)
Connector Military 451/851 and AS Series Connectors Weight
12 up to 50A // 22 up to 25A // 2 CAN
