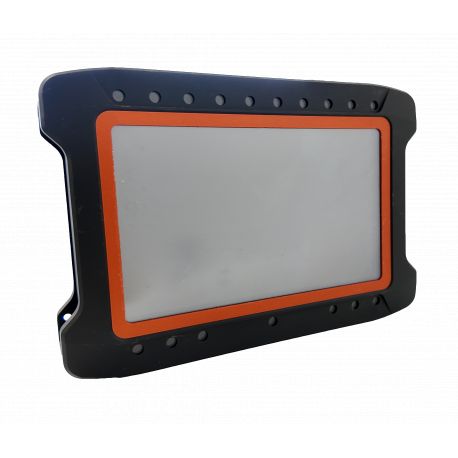

NT7 FULL COREVIEW is the most advanced dashboard in the COREVIEW range. Delivered ready to use, it features a COREVIEW pre-configured setup with integrated GPS, onboard data logging and a 37-way connector, making it a true embedded command center.
Compatible with a specific list of ECUs on the market, it enables fast installation without complex development.
The dashboard is supplied with Dash Editor – Basic License for essential adjustments.
Starter wiring loom available as an optional accessory, for quick and clean installation.
The NT7 FULL COREVIEW is the most complete version of the COREVIEW range. Built on the NT7 platform, it integrates GPS, onboard data logging and a 37-way connector, transforming the dashboard into a centralized supervision and control system.

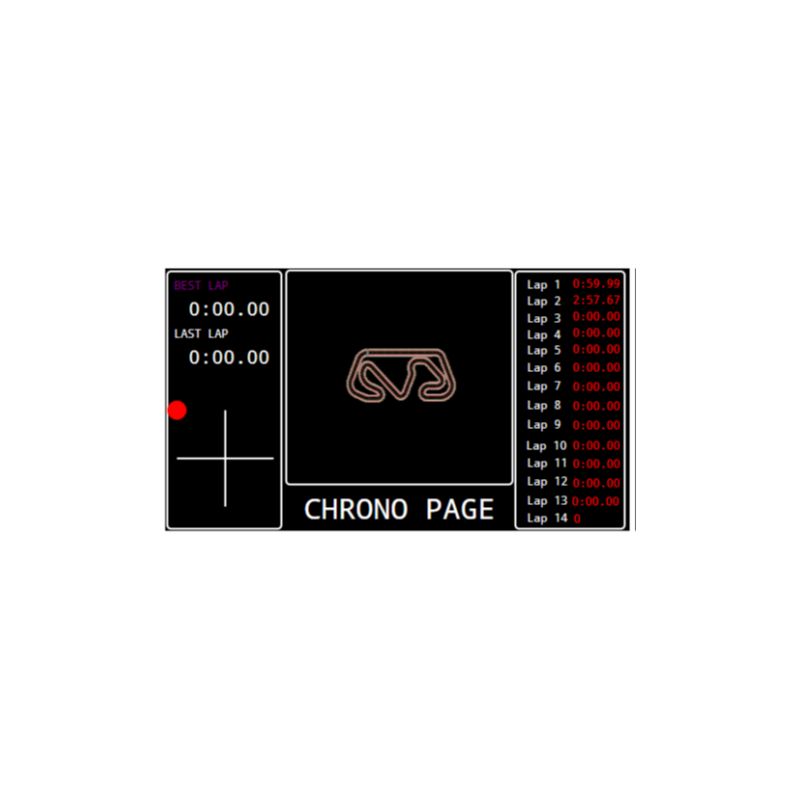

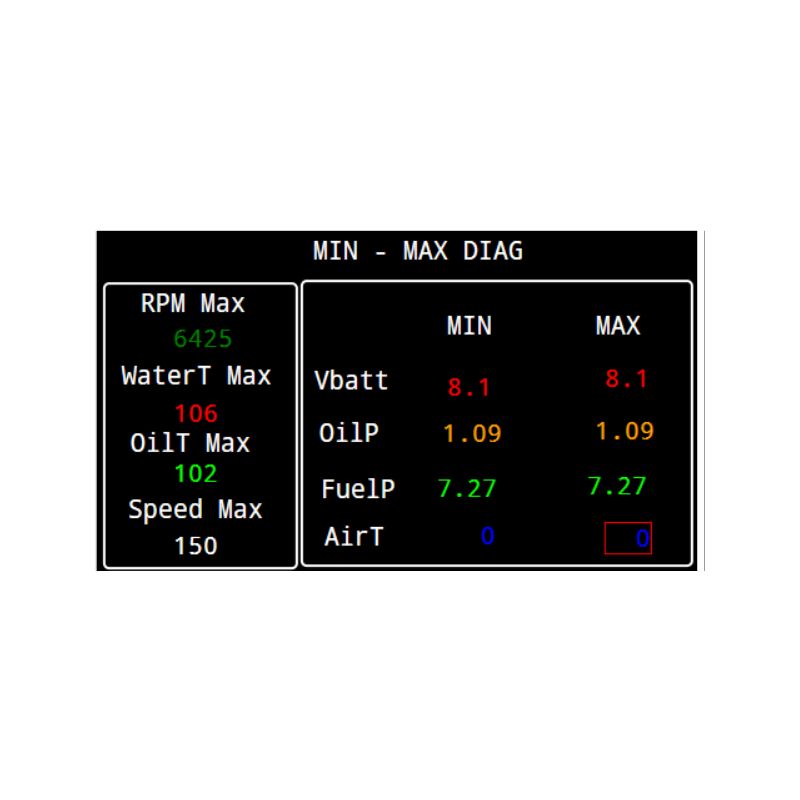

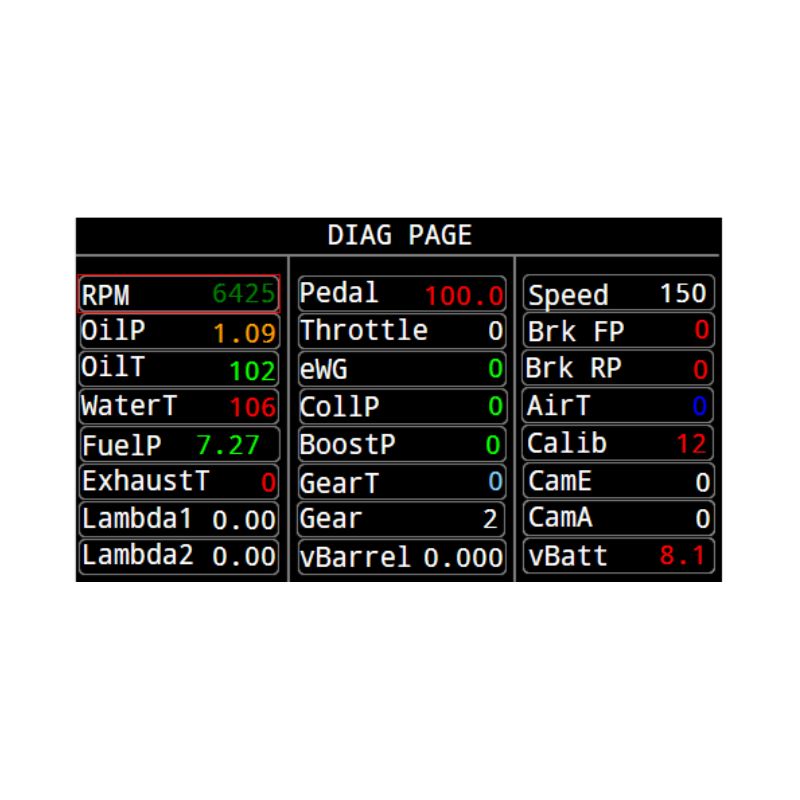

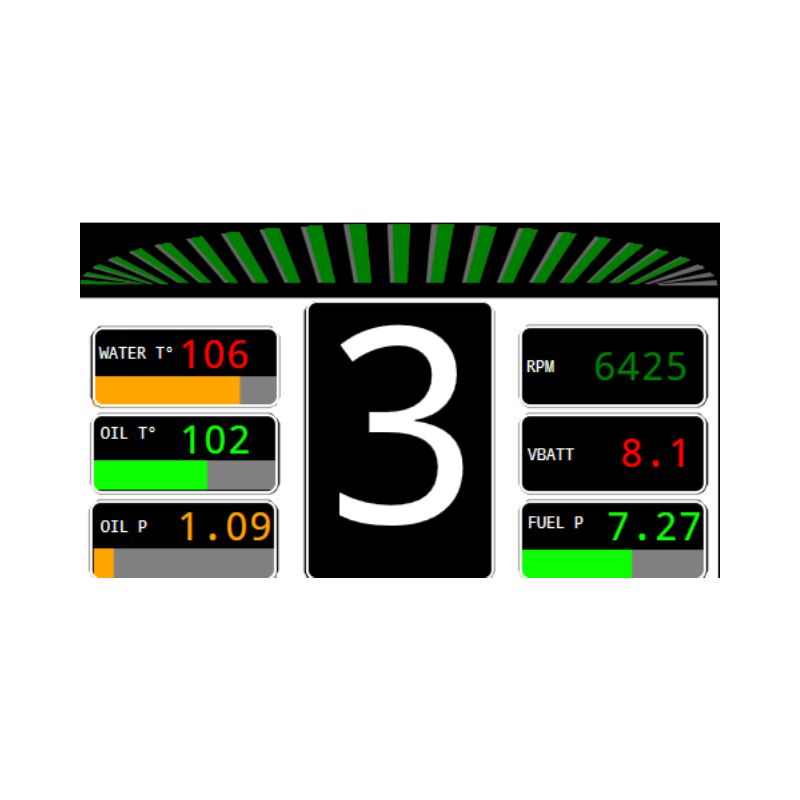

The COREVIEW pre-configured setup includes performance, engine, diagnostic, GPS and advanced supervision pages, with channels and alerts already calibrated for immediate operation.
Compatibility is provided for a specific list of ECUs. For other ECUs, XAP can offer a dedicated configuration upon request.
Supplied with Dash Editor Basic License, the NT7 FULL COREVIEW allows adjustment of essential parameters such as RPM thresholds, LED behavior and basic display settings.

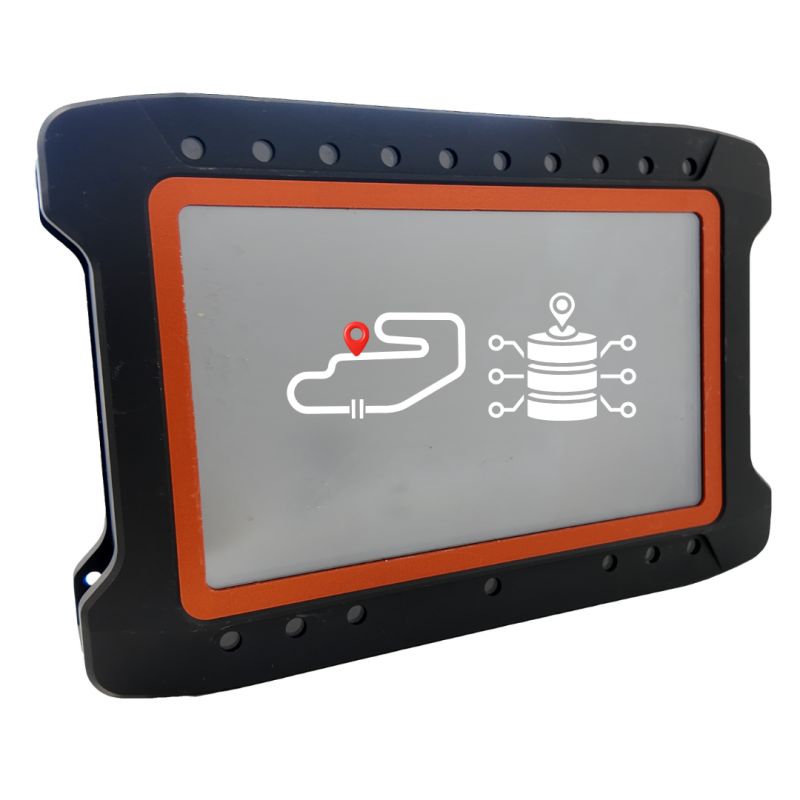

With integrated GPS for performance analysis and extended I/O via the 37-way connector (CAN, LIN, RS485, Ethernet, analog and digital inputs), the NT7 FULL COREVIEW is designed for demanding monitoring and control applications.
A starter wiring loom is available as an optional purchase to ensure clean and secure installation.
