PF0998
The KMS MD35 is a fully programmable engine management system designed for motorsport, high-performance and engine development applications. Compatible with most gasoline engines up to 12 cylinders, it offers advanced engine control, integrated 38-channel data logging and extensive tuning capabilities for race teams, engine builders and performance specialists.
Featuring dual-processor technology, CAN communication and advanced control strategies, the KMS MD35 provides a powerful and flexible solution for demanding engine management projects.

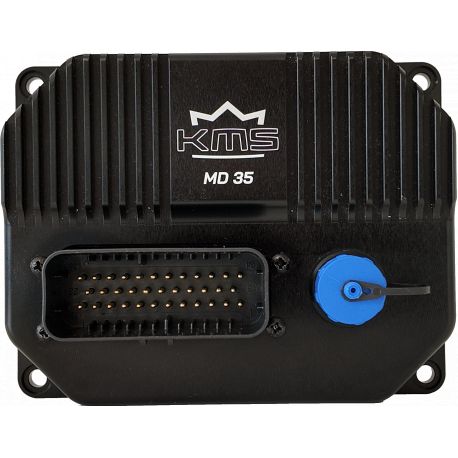

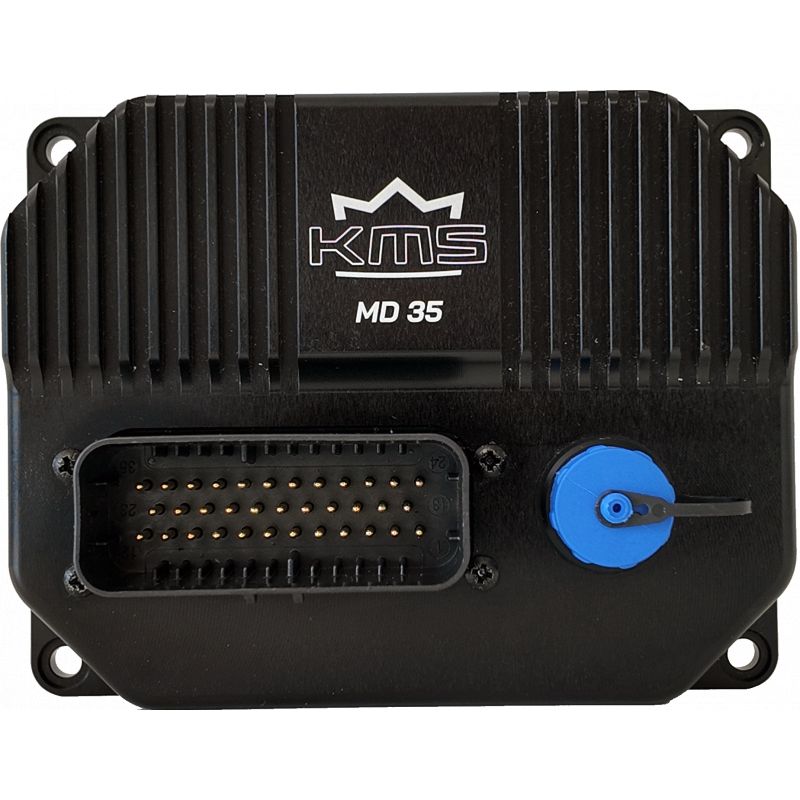

The KMS MD35 ECU is a fully programmable engine management system designed for motorsport, performance vehicles and advanced engine development applications.
Suitable as a standalone ECU for most gasoline engines up to 12 cylinders, the MD35 delivers complete engine control while maintaining a user-friendly tuning environment.
One of its key strengths is its integrated 38-channel data logging system, allowing detailed performance analysis and professional-level engine development. This feature enables tuners and engineers to optimize engine behavior based on real-world operating data.
The MD35 can take over ignition and fuel control at any desired engine speed, boost pressure or throttle position, providing exceptional integration flexibility.
When combined with KMS UEGO CAN controllers, the ECU provides self-learning lambda control for accurate air-fuel ratio management, helping maximize performance, drivability and engine efficiency.
With advanced functions such as launch control, anti-lag, traction control and boost control, the KMS MD35 is perfectly suited for motorsport and high-performance applications.
The KMS MD35 ECU package includes:
• Main connector
• Communication cable
• Wiring diagram
Software, firmware and documentation are available from KMS.
The engine harness is sold separately; you can find it here.
• Complete engine management for up to 12 cylinders
• Sequential or banked injection
• Direct ignition support
• Hall and inductive trigger support
• Non-standard firing order support
• Multiple map selection
• Dual self-learning lambda control
• Compatible with KMS UEGO CAN controllers
• 38-channel integrated data logging
• 4 Mb memory capacity
• 2 engine load inputs
• 3 configurable analog inputs
• 3 configurable auxiliary outputs
• USB interface
• CAN communication
• RPM limiter
• Speed limiter
• Pit lane limiter
• Launch control
• Traction control
• Boost control
• Anti-Lag System (ALS)
• Powershift control
• Idle speed control
• Integrated diagnostics
• Dual processor technology
• Gold-plated connector pins
• Short-circuit protected outputs
• Water-resistant housing
• Designed for harsh environments
• Circuit racing
• Rally
• Drift
• Time Attack
• Vehicle development
• High-performance builds
• Prototype vehicles
