PF0973

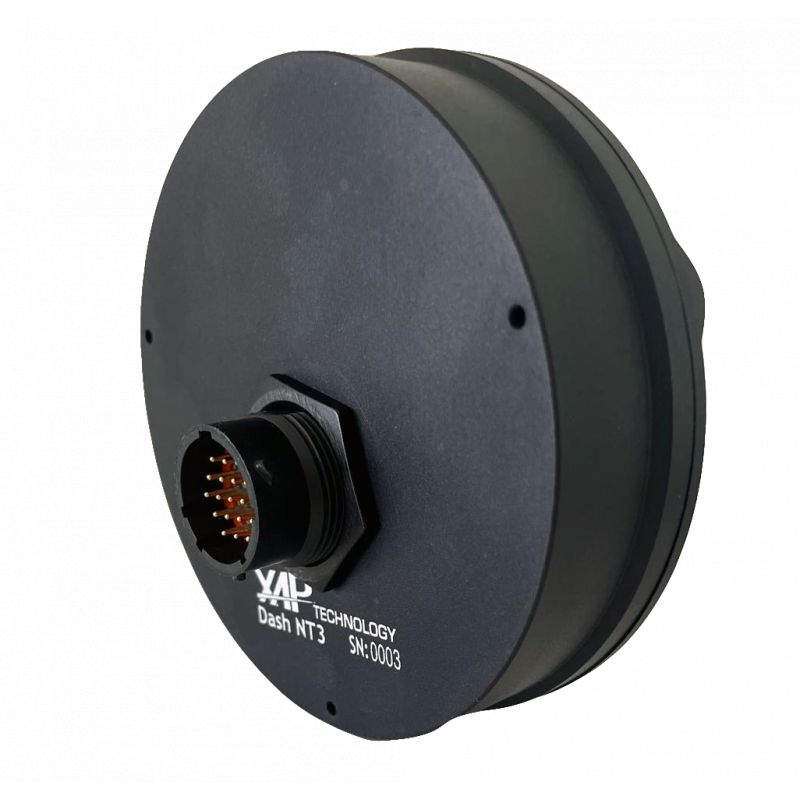

Dash NT3 with GPS – 3” Circular Dashboard with Performance Analysis
The Dash NT3 with GPS integrates performance analysis, predictive lap timing and tripmaster functions. Featuring a 3” transflective TFT display and dual CAN architecture, it combines visualization, embedded processing and GPS synchronization in a compact, rugged device.
The Dash NT3 with GPS enhances the NT3 architecture by adding GPS-based performance analysis.
The integrated GPS enables:
• Performance Analyser
• Predictive lap time
• Real-time monitoring
• Tripmaster for rally and endurance
Core NT3 specifications remain:

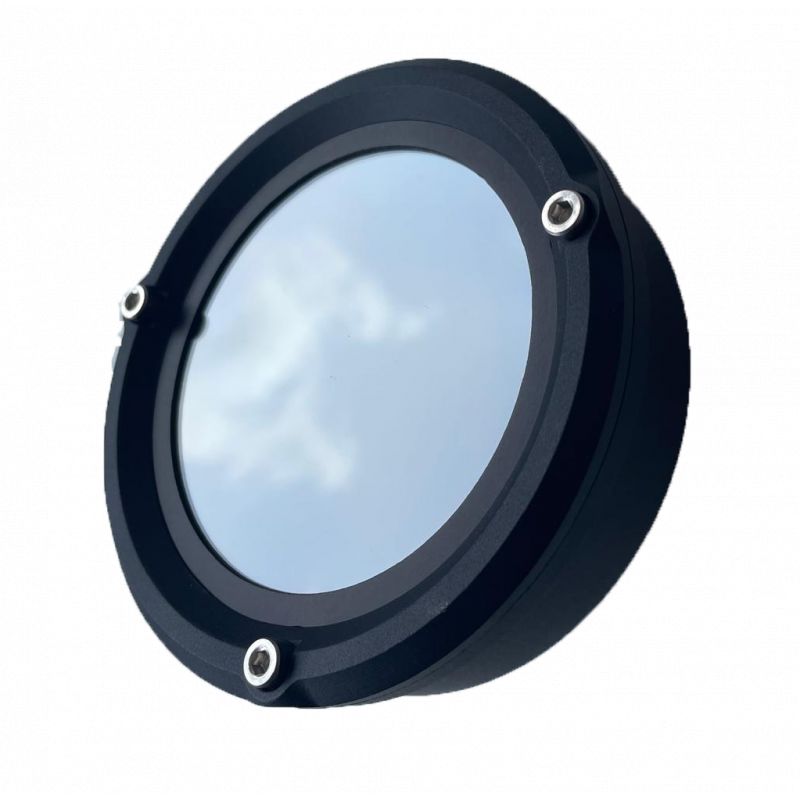

• 3” circular transflective TFT display
• 432x432 px resolution
• Dual CAN bus + 2 programmable resistors
• 4 analog inputs
• 4 digital inputs
• 8–70V power supply
The GPS integration allows synchronization of vehicle data with positioning for advanced strategic decision-making.
The NT3 with GPS handles:
• Embedded math channels
• Complex alarms
• Event-based CAN logic
• Predictive race analysis
Applications include:
• Circuit racing
• Rally
• Endurance
• Test benches
• Simulator environments
• CNC anodized aluminum housing
• IP65
• 30G shock resistance
• -20°C to +80°C operating range
• Ø106 x 49 mm
The NT3 with GPS delivers real-time visualization and performance analytics in a single compact device.
