PF0974

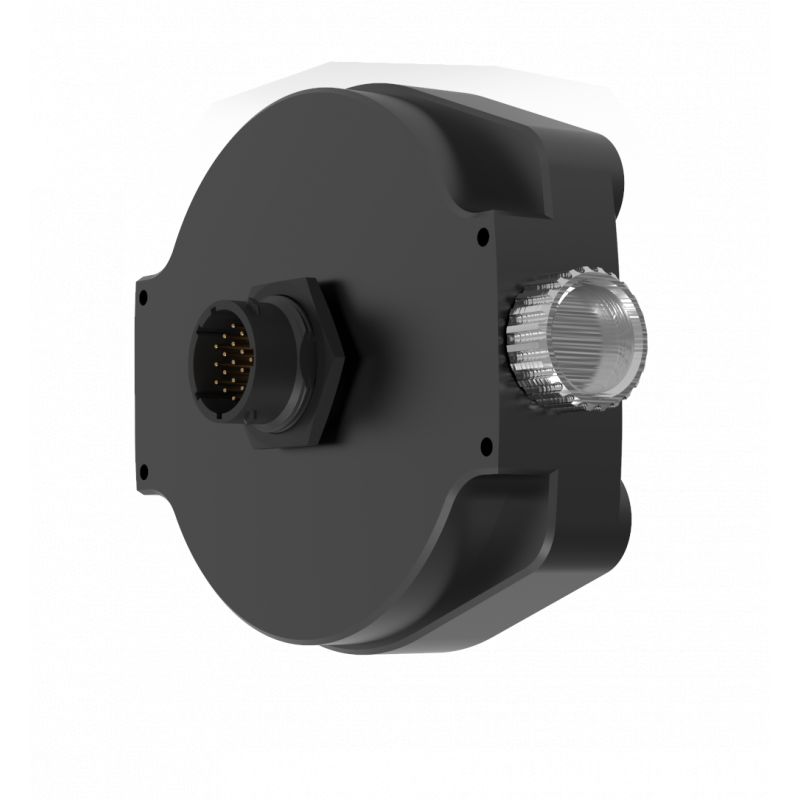

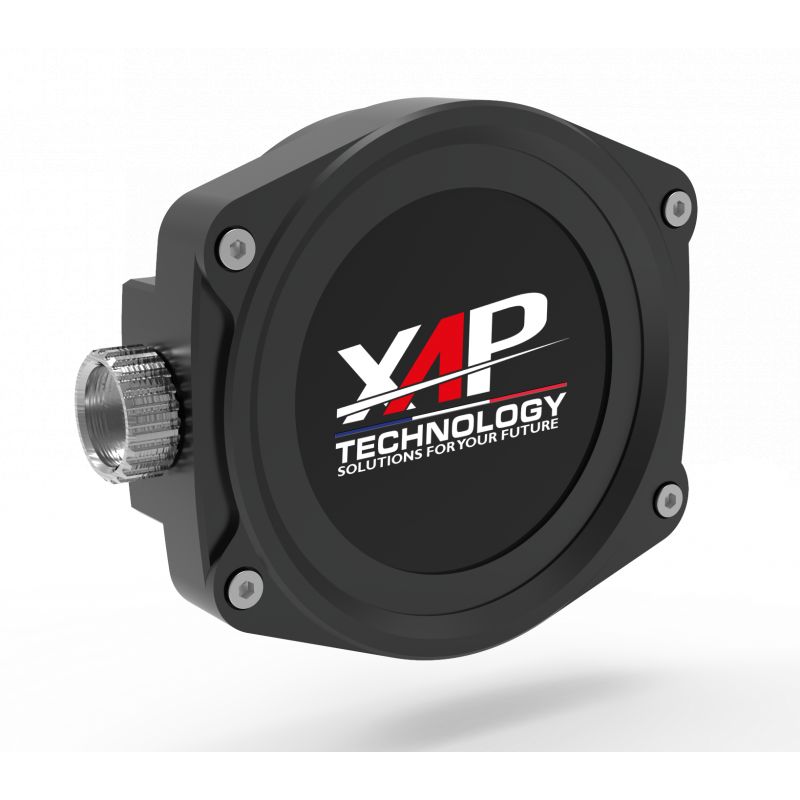

Dash NT3-R GPS – 3” Rotary Motorsport Dashboard with Performance Analysis
The Dash NT3-R GPS combines a high-contrast circular display, Hall-effect rotary control and GPS-based performance analysis. Featuring dual CAN-FD architecture and full Dash Editor configuration, it delivers real-time visualization, embedded control and predictive lap timing in a compact, rugged device.
The Dash NT3-R with GPS integrates GPS-based performance analysis into the NT3-R intelligent rotary platform.
The GPS option enables:
• Performance Analyser
• Predictive lap time
• Real-time monitoring
• Rally / endurance tripmaster
The NT3-R GPS features:
• Circular transflective TFT display (432 x 432 px)
• Sunlight readability
• Hall-effect rotary switch (12 positions)
• Immediate page switching and action validation
• Dual CAN bus
• 2 programmable CAN resistors
• 4 analog inputs
• 4 digital inputs (or 3 + 1 switch)
• USB
• 8–70V supply range
The GPS integration synchronizes ECU data with positioning for advanced strategic race analysis.
• Aluminum housing
• Panel or flush integration
• IP6530G vibration resistance
• -20°C to +80°C operating range
The NT3-R GPS delivers embedded intelligence, control ergonomics and performance analytics in one compact circular dashboard.
