PF0601

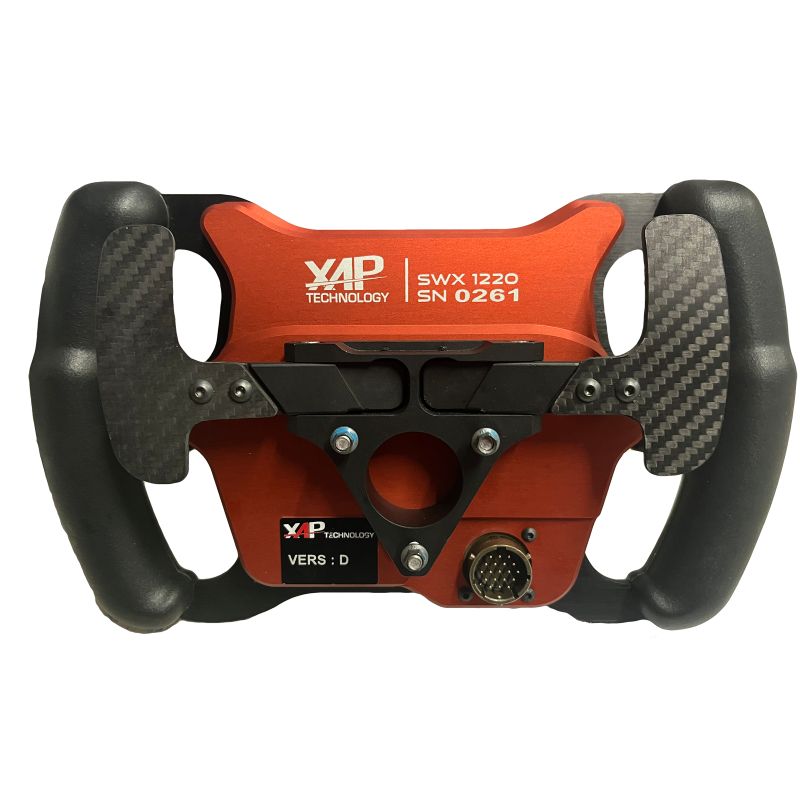

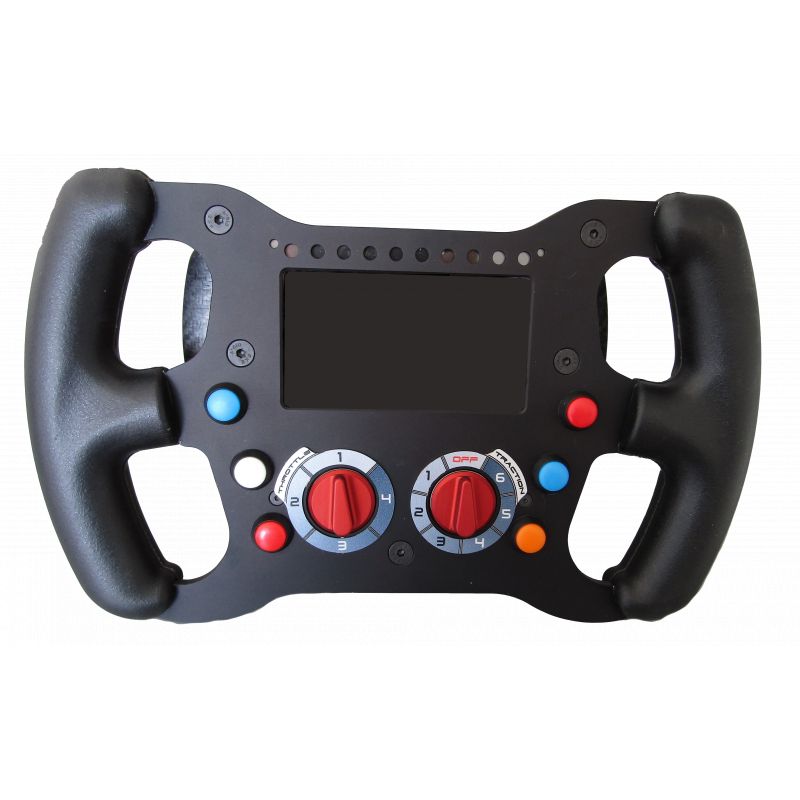

The new entry-level steering wheel by XAP: the SWX 2210 Single Seater Steering Wheel 2 Pallets 2 Rotary 6 Switch is based on the latest platform version currently in use (Formula E, F2, Jaguar Ipace E-trophy)
The SWX meets the highest level of competition.
XAP Technology steering wheels and products are of very high quality.
| Feature | Data | Comment | |||
| Dimension | see drawings | ajustement to be done to fit the request | |||
| Connector | TBD | ||||
| Screen | 4,3"TFT color 480x272 | ||||
| Luminosity | By sensors or CAN control | ||||
| Com Lines | CAN | 2 | |||
| WIFI | 1 | For XAP tools | |||
| USB | 1 | For XAP tools | |||
| Logic Platform | MCU | STM32F746 à 192Mhz, 1MB Flash memory, 320KB SRAM | |||
| GPU | STM32F746, 16MB SDDRAM for frame bufer | Chrom art accelerator | |||
| Inputs | Rotary | 2 | Internal | ||
| Paddle | 2 | hall effect--internal | |||
| Switch | 6 | internal | |||
| Outputs | Paddle Signal | 2 | |||
| Switch Radio | 1 | ||||
| Misc | Bar/Alarm Led | 10 | |||
| Dimming sensor | 1 | ||||
| DataLogger | 4Gbyte | Option | |||
| Ambient Pressure | 1 | Infineon KP234 | |||
| Bluetooth led | 1 | with Bluetooth option | |||
| Predictive LapTime | 1 | Option | |||
| GPS | 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN | With GPS option | |||
