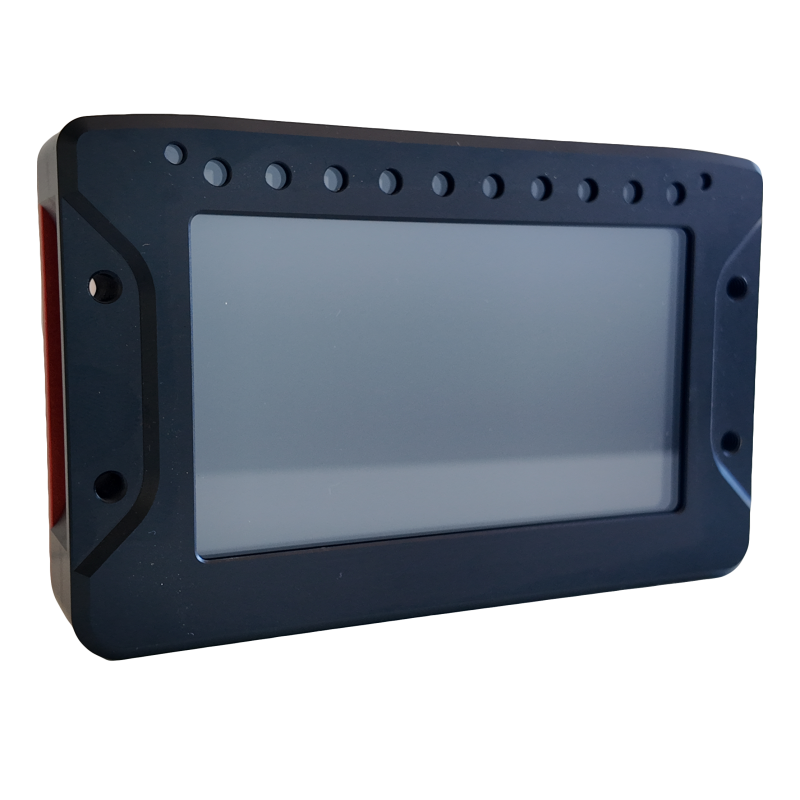

DASH NTX-110 STANDARD DASHBOARD
Inscrivez-vous/connectez-vous pour voir nos tarifs
DASH NTX Carbon — configurable acquisition for motorsport and test benches
The XAP Technology DASH NTX is a 4.3-inch dashboard for motorsport, endurance racing, test benches and industrial monitoring. Its standard aluminium enclosure can be replaced by an optional carbon enclosure without changing the IP65 rating. XAP brings display, acquisition and configuration together in a compact unit, with dedicated looms available to simplify integration.
The DASH NTX is used in WEC, IMSA and LMP3 programmes, as well as by established rally manufacturers.
A complete configuration for actionable data
The NTX features a 480 × 272 px TFT, an ambient light sensor and 10 programmable RGB LEDs. DashEditor lets users organise the data, alerts and bar graphs required by the driver or operator. It also allows users to build pages from scratch or adapt an existing configuration. Maths channel management is included.
The optional data logging function stores up to 8 GB of data and exports recordings in CSV format. Users can analyse these files with XAP data analysis software or any other software capable of importing CSV data. GPS, Performance Analyser and Tripmaster are included in the full configuration.
XAP offers Wi-Fi, Bluetooth and the carbon enclosure as options to tailor the DASH NTX to the project. Aluminium is the standard enclosure material and both materials retain the IP65 rating. XAP also offers the PF0638 start loom and PF0636 table loom to support wiring preparation and bench testing.
Key benefits
- Sunlight-readable 4.3-inch TFT with 480 × 272 px resolution.
- 10 programmable RGB LEDs and day/night mode.
- GPS, 8 GB data logger, Performance Analyser and Tripmaster available as options or included in the full configuration.
- 4 analogue inputs and 4 digital inputs usable as wheel-speed inputs.
- Up to 2 CAN buses.
- DBC-configurable CAN communication for multiple ECUs.
- Standard aluminium or optional carbon enclosure, both with IP65 ingress protection.
Technical specifications and integration
The DASH NTX operates from 8 to 70 V and exchanges data over CAN and USB. XAP can supply PF0638 and PF0636 looms and a custom configuration. The 19-pin connector pinout is reproduced below. Before commissioning, the installer should confirm power protection, CAN termination and data formats against the system documentation.
Integration
The product provides up to two CAN communications, 4 analogue inputs usable as switches and 4 digital inputs usable for frequency signals. These digital inputs, identified as WHEEL1 to WHEEL4 in the pinout, can be used as wheel-speed inputs. DBC support allows messages to be tailored to multiple ECUs when the required database and protocol are available.
GPS, 8 GB logging, Performance Analyser and Tripmaster are stated as included with PF0908. Wi-Fi, Bluetooth and the carbon enclosure are available as options. The start loom and table loom remain separate references.
| Pin | Signal |
|---|---|
| A | CAN1_L |
| B | CAN1_H |
| C | EXT_USB_D_N |
| D | EXT_USB_GND |
| E | ANA1 |
| F | WHEEL1 |
| G | WHEEL2 |
| H | ANA2 |
| J | 5V_OUT |
| K | Alim |
| L | GND |
| M | EXT_USB_VBUS |
| N | EXT_USB_D_P |
| P | CAN2_H |
| R | CAN2_L |
| S | ANA3 |
| T | ANA4 |
| U | WHEEL3 |
| V | WHEEL4 |
| Specification | Value |
|---|---|
| Power supply | 8 to 70 V |
| Display / resolution | 4.3-inch sunlight-readable TFT; 480 × 272 px |
| Ambient light sensor | Yes, day/night mode available |
| RPM / alert / diagnostic LEDs | 10 programmable RGB LEDs |
| CAN communication | Up to 2 CAN buses |
| PC interface | USB |
| Analogue inputs | 4, usable as switches |
| Digital inputs | 4, usable for frequency signals and as wheel-speed inputs |
| Compatibility | DBC-configurable CAN for multiple ECUs |
| Electromagnetic compatibility | Compliance with the automotive EMC standard |
| Specification | Value |
|---|---|
| Dimensions | 131 × 89 × 47 mm |
| Weight of the documented Carbon configuration | 286 g (carbone) / 390g (aluminium) |
| Ingress protection | IP65 with either the aluminium or carbon enclosure |
| Operating temperature | −20 °C to 80 °C |
| Shock and vibration resistance | > 30 G RMS |
| Enclosure | Standard aluminium; optional carbon |
| Option | Function |
|---|---|
| GPS and synchronisation | Available as options depending on the version; included in the full PF0908 configuration |
| Data logging | 8 GB data logger with CSV export, available as an option depending on the version and included in the full PF0908 configuration |
| CSV data analysis | XAP data analysis software or any other software capable of importing CSV data |
| Wireless connectivity | Wi-Fi and Bluetooth available as options |
| Carbon enclosure | Available as an option; same IP65 rating as the standard aluminium enclosure |
| Race analysis | Performance Analyser with GPS and odometer / Tripmaster, available as options depending on the version and included in the full PF0908 configuration |
| Looms | PF0638 start loom and PF0636 table loom, separate references |
| Configuration | Custom configuration and PC tool |
| Simulation | Compatible with simulators |
| Reference | Description |
|---|---|
| PF0908 | Product — DASH NTX Carbon Full (source designation) |
| PF0638 | Option — DASH NTX start loom |
| PF0636 | Option — DASH NTX table loom |
