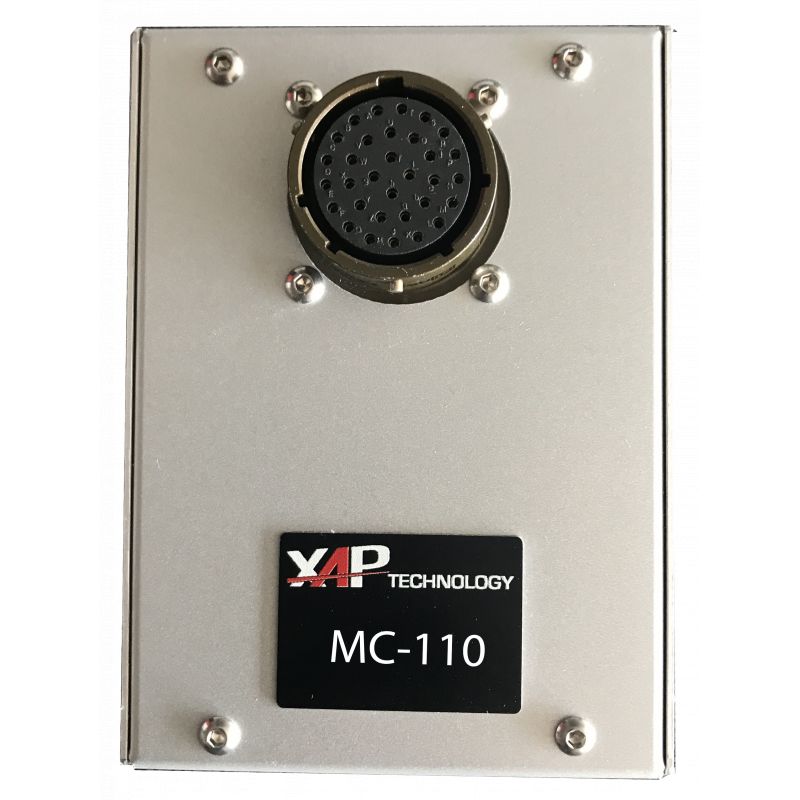

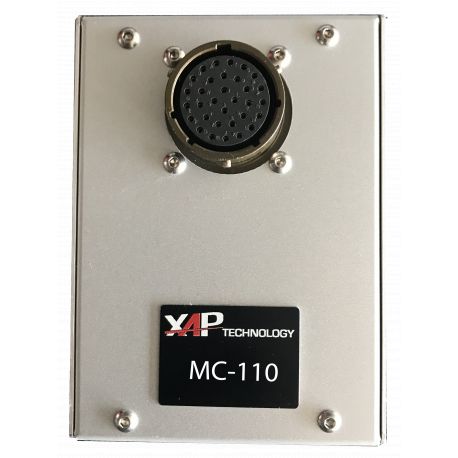

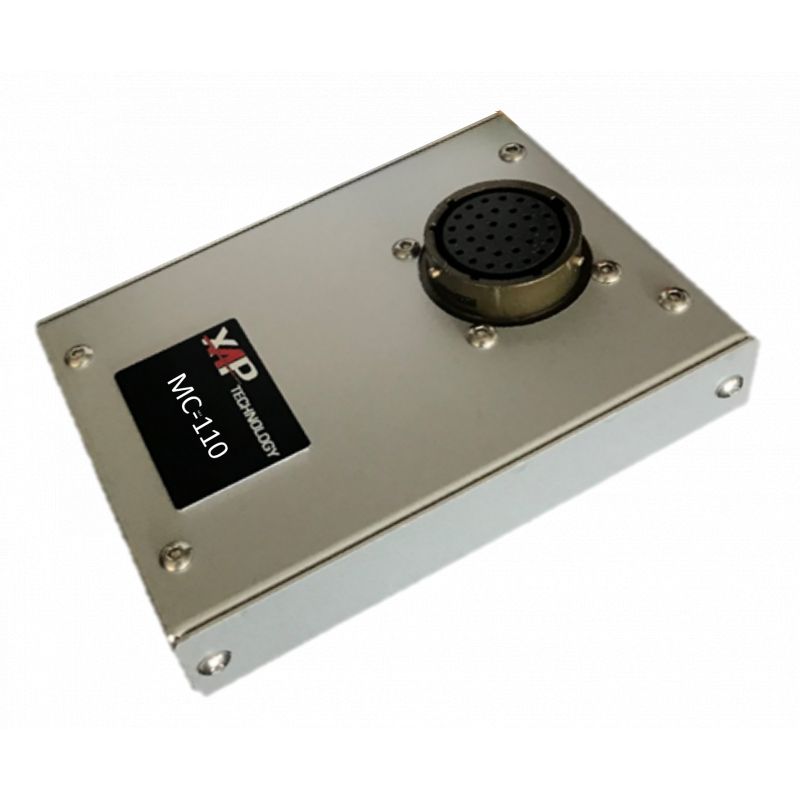

MC-110 – Dual Motor Controller CAN / PWM
The MC-110 by XAP Technology is a compact and powerful dual motor control module designed for motorsport and demanding embedded applications. Featuring two protected 10A H-bridges, analog feedback inputs and CAN or PWM control, it efficiently drives electrical actuators, aerodynamic systems, seats, windows and auxiliary mechanisms.
Reliable, versatile and easy to integrate, the MC-110 simplifies your electrical layout while ensuring safe operation.
Developed by XAP’s engineering department, the MC-110 is a high-efficiency motor control module designed to manage electrical actuators in motorsport and advanced embedded systems.
The MC-110 integrates two protected 10A H-bridge outputs, operating independently or in coupled mode.
Each output can also function as a simple power distribution unit.
Typical applications include:
• electric windows
• electric seats
• active aero control (wing/lift/angle)
• electric wastegate
• linear actuators
• auxiliary vehicle systems
The module can be controlled via:
• CAN bus (250k / 500k / 1Mbit)
• PWM inputs
• analog position feedback
It supports:
• coupled learning mode
• onboard diagnostics
• target control via CAN
• 2 analog inputs
• 2 PWM control inputs
• 1 encoder controller (brushless)
• 2 protected 10A H-bridges
• 2x 5V sensor reference outputs
• 1 USB port (programming)
• 8 to 18V supply voltage
• Aluminum housing
• Operating temperature: -20°C to +85°C
The MC-110 is a versatile, safe and efficient embedded motor drive solution, engineered to simplify vehicle architectures and improve system reliability.
