LOGGER NT - 37-WAY CONNECTOR + WIFI + GPS OPTION

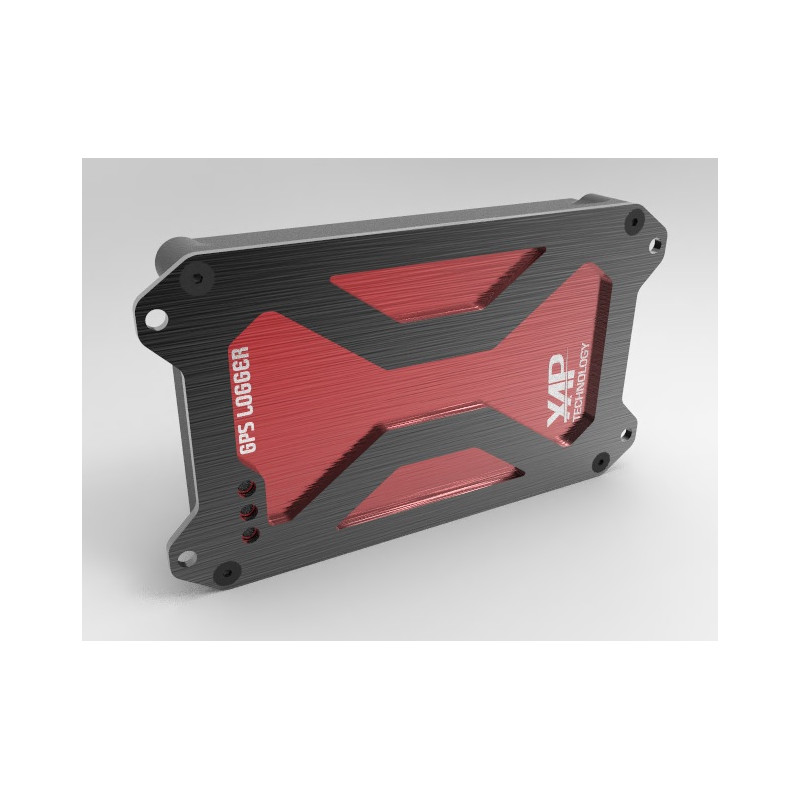

NT Logger — configurable data acquisition for motorsport

The XAP Technology NT Logger is a data acquisition module designed to centralise, record and process data from a competition vehicle. It supports teams competing in rallying, circuit racing, off-road events and other demanding disciplines. Its adaptable configuration, integrated 8 GB memory and optional GPS, Wi-Fi and performance analysis capabilities provide a solution tailored to each project.

The NT Logger communicates with a wide range of ECUs and CAN devices. XAP can provide predefined configurations or adapt the data table to the vehicle’s requirements. Users can also define their own parameters through the dedicated PC software available as an option.

Selected data is stored in the integrated memory and can then be loaded into the performance analysis software or exported in CSV format. An internal cell protects datasets if the vehicle’s power supply is suddenly interrupted.

Depending on the selected configuration, XAP can equip the NT Logger with a 20 Hz GPS and three accelerometers, real-time Wi-Fi communication, a performance analyser with predictive lap timing, a second CAN bus and a 37-way Autosport connector.

Applications

The NT Logger supports data acquisition projects for rallying, circuit racing and off-road applications.

Key benefits

  • Configurable logging of 1 to 400 channels at rates from 1 to 200 Hz, depending on the data table.
  • Integrated 8 GB memory and CSV data export.
  • Communication with a wide range of ECUs and CAN devices through adapted configurations.
  • IP65 aluminium enclosure and Autosport connectors.
  • Optional 20 Hz GPS, Wi-Fi, performance analysis and interface expansion.

Technical specifications and integration

XAP assists with defining the data table, communications and options to adapt the NT Logger to the vehicle architecture. The system integrator can use CAN, USB, analogue and digital interfaces, with their exact allocation determined by the connector and selected configuration.

Integration

The NT Logger operates from an 8 to 70 V power supply. The main J1 connector includes the power supply, CAN 1, USB, two analogue inputs, two digital inputs and a 5 V output. The optional 37-way J2 connector adds analogue and digital inputs, a second CAN bus, sensor power supplies and serial interfaces. XAP can prepare a specific configuration to simplify integration with the vehicle’s ECU and other devices.

Technical specifications
Specification Value
Recorded channels 1 to 400
Logging frequency 1 to 200 Hz
CAN communication Up to two CAN buses, with or without termination
Internal memory 8 GB
Power supply 8 to 70 V / 450 mA
Operating temperature −20 °C to 80 °C
Ingress protection IP65
Weight 750 g
Mechanical specifications
Specification Value
Dimensions 166 × 72 × 30 mm
Enclosure Aluminium, with a customisable front panel
Connectors Main 13-way Autosport connector; optional 37-way Autosport connector
Available options
Option Function
Data table configuration Predefined or project-specific configuration
20 Hz GPS Internal GPS, three accelerometers and an external active antenna
37-way Autosport connector Expansion of input and communication interfaces
Wi-Fi communication Real-time communication, connection to Wi-Fi sensors and transfer to E-Race, a PC or a dash

Connector pinouts

The following tables reproduce the signal designations from the supplied pinout diagram. J1 is identified as “8STA 2 10-35 PN”. J2 is identified as “8STA 2 14-35 SN”; this 37-way connector is optional. Signal names are retained exactly as shown on the diagram to avoid altering their electrical meaning.

J1 pinout — 8STA 2 10-35 PN
Pin Signal
1 CAN1_L
2 CAN1_H
3 USB-
4 AGND
5 ANA1_IN
6 DIGI1HS_IN
7 DIGI2HS_IN
8 ANA2_IN
9 5VOUT1
10 Alim
11 GND
12 USB_PWR
13 USB+
14 To be confirmed — “FIX” mark on the diagram
J2 pinout — optional 37-way connector — 8STA 2 14-35 SN
Pin Signal
1 ANA1_IN
2 ANA2_IN
3 ANA3_IN
4 ANA4_IN
5 ANA5_IN
6 ANA6_IN
7 ANA7_IN
8 ANA8_IN
9 ANA9_IN
10 ANA10_IN
11 ANA11_IN
12 ANA12_IN
13 ANA13_IN
14 5VOUT1
15 5VOUT1
16 5VOUT2
17 5VOUT2
18 Alim_OUT1
19 Alim_OUT2
20 DIGI3HS_IN
21 DIGI4HS_IN
22 DIGI5_IN
23 DIGI6_IN
24 DIGI7_IN
25 RX232_IN
26 CAN2_H
27 CAN2_L
28 TX_LIN
29 GND
30 GND
31 AGND
32 AGND
33 AGND
34 AGND
35 AGND
36 AGND
37 AGND
XAP references
Reference Description
PF0538 Standard NT Logger
PF0539 Standard NT Logger + GPS
PF0541 Standard NT Logger + Wi-Fi
PF0540 Standard NT Logger + 37-way connector
PF0546 Standard NT Logger + 37-way connector + GPS + Wi-Fi
PF0589 CAN module without logger + 37-way connector

Documentation

View the official NT Logger datasheet.

PF0546

Download
