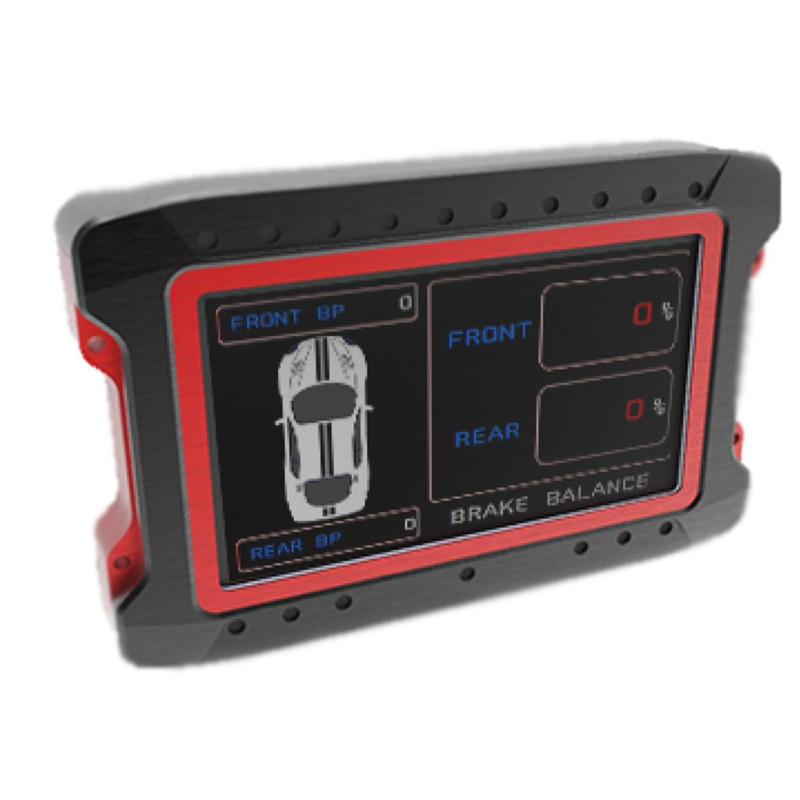

DASH NT7 FULL WITH GPS AND 37-WAY CONNECTOR

DASH NT7 — interactive supervision on a 7-inch display

The XAP Technology DASH NT7 is a 7-inch dashboard for test-bench supervision, endurance programmes, motorsport and industrial systems. It displays, logs and controls multiple parameters through one interface. Configurable CAN architecture, numerous inputs, and touch and connectivity options allow XAP to tailor the control station to a complex installation.

Bring monitoring and control together

The DASH NT7 displays multiple real-time channels, plots live graphs and manages alarms or system modes. Its 800 × 480 px TFT, ambient light sensor and 16 programmable RGB LEDs keep essential states readable by day or night.

DashEditor lets users build a screen configuration from scratch or adapt an existing setup. Built-in maths and virtual channels enhance received data, while bidirectional communication can send commands to connected modules when supported by the system configuration.

The NT7 suits engine and vehicle test benches, simulation, industrial monitoring, motorsport, IoT and telemetry platforms. XAP offers self-supporting enclosure and enclosure-free versions for panel or rack integration, plus GPS, logging, touchscreen and extended connectivity options.

Key benefits

• Sunlight-readable 7-inch TFT with 800 × 480 px resolution.
• 16 programmable RGB LEDs and ambient light sensor with day/night mode.
• Up to 32 analogue 0–5 V inputs and 12 digital inputs with the full hardware option.
• DBC-configurable CAN communication for multiple ECUs and test systems.
• 20 Hz GPS, 8 GB logging, touchscreen and extended connectivity available by version or option.
• Enclosed and enclosure-free versions for different mechanical integration needs.

Technical specifications and integration

The DASH NT7 operates from 8 to 70 V and communicates over CAN and USB. XAP can tailor the configuration, supply a start or table loom and select the options required for a bench or vehicle. The installer should then confirm pinout, power protection, CAN termination and interfaces against the documentation for the selected variant.

Integration

The DASH NT7 uses one main 19-way connector and can receive two 32-way connectors. The first 32-way connector adds 14 analogue inputs, 10 Mb Ethernet, 1 LIN, 1 RS485 and 1 RS232. The optional second connector adds 14 analogue inputs and 12 digital inputs.

With all three connectors and the full hardware option, the DASH NT7 provides 32 analogue 0–5 V inputs, 12 digital inputs, 2 CAN buses, 10 Mb Ethernet, 1 RS485, 1 RS232 and 1 LIN. PF0678 and PF0692 combine GPS with extended connectivity; PF0691 and PF0692 are supplied without an enclosure. The PF0698 touchscreen option turns the display into a control interface.

Connector pinout

The tables below reproduce the pinout supplied by XAP. The 32-way J6 connector is the optional extension. Installers should use this pinout together with the electrical documentation for the selected variant.

XAP references

Documentation

Open the official DASH NT7 technical sheet.
