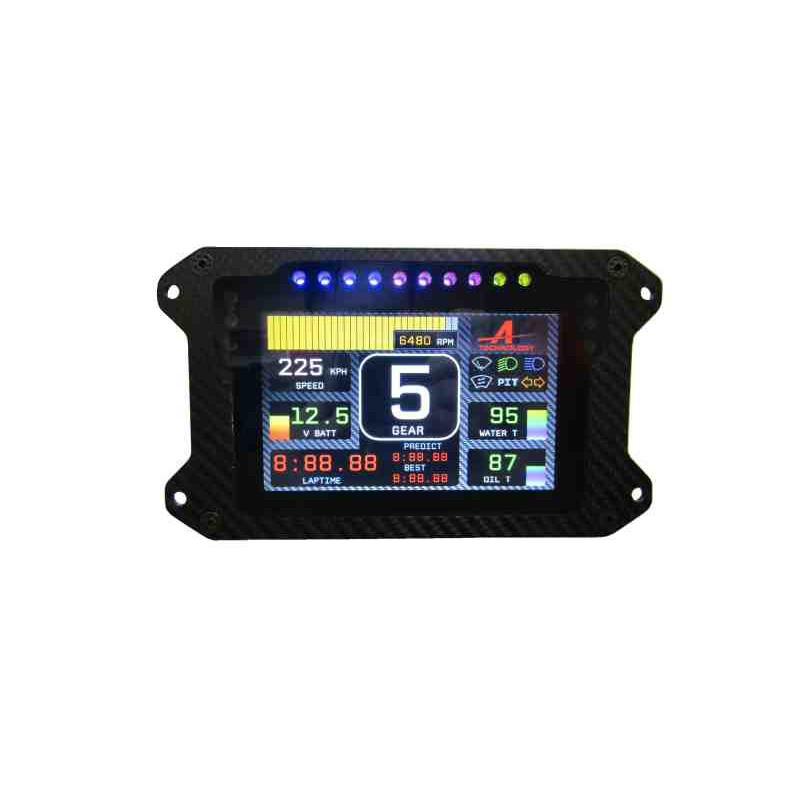

DASH NT5-131 WITH GPS AND 37 TRACK CONNECTOR

The FULL NT5 is a powerful digital dashboard to use at all levels of the competition.

A 5.0'' TFT color display with a resolution of 800 x 480 pixels and an integrated ambient light sensor ensures perfect legibility in all environments.

Inside an IP65 rated aluminum case with a carbon front, the NT5 is suitable for all types of applications.

The Dash NT5 includes an option to capture race information.

The E-Race software sold separately ensures the exploitation of the acquisitions using analysis tools from the motor racing usage.

The screen and layout of the information for the simulator are fully customizable.

The DASH EDITOR software makes it possible to create the most complex dashboards, it comes from the XAP competition experience.

Typical configurations are provided, making it easy to format the screens.

The 37-way connector provides additional analog connections, allowing the Dash NT to display multiple values, trigger alerts, send information about the CAN bus, act as a data logger

The 20 Hz GPS module allows the Dash to provide the laptime, the predictive laptime, to record all acceleration data.

• Resolution: 800 X 480 Pix
• RPM Led: 10 RG
• Alert led: 6 RG
• Can communication: 2 X 20b terminated or not
• Can protocol: DTA, Sodemo, Motec, Cosworth, Magneti-Marelli, E-Race, Life, AEM,
• USB: full spee
• Weight: 750 gr
• Temperature range: - 20 ° C to 80 °C
• Voltage: 8 to 19 V / 650mA
• Data logging memory: 4 G bytes / 1kHz
• Waterproof IP65
• 13 Analog Inputs
• 7 Digital Inputs
• GPS 20 Hz
