XAP Technology GT-R Steering Wheel — Direct Control for Rally Applications

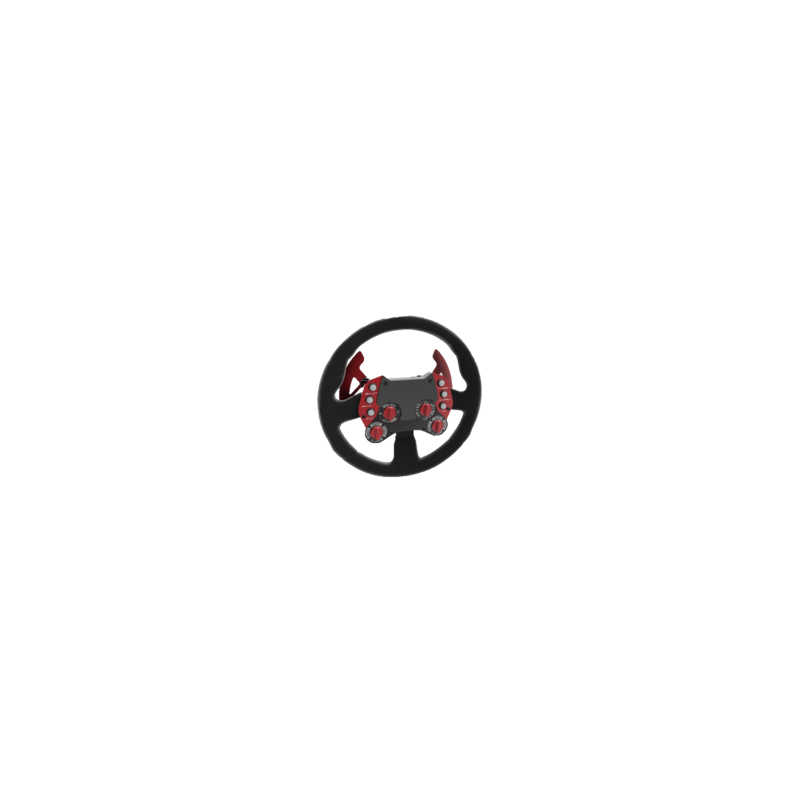

The XAP Technology GT-R is a competition steering wheel with a full rim, designed for rally vehicles. It combines six backlit push buttons, four rotary switches and two or three paddles depending on the selected configuration. Contactless Hall effect technology for the rotaries and paddles reduces wear and play, while CAN communication helps integrate the wheel into the vehicle's electronic architecture.
The 33 cm rim provides a secure grip for the steering movements encountered in rallying.
XAP can customise the front panel with a laser-engraved logo, image or button labels. XAP can also manufacture a quick release for this steering wheel, creating a solution suited to the steering column and vehicle architecture. The two- or three-paddle configuration can be selected according to the functions required by the project.
Key Benefits
- 33 cm full rim suited to rally applications.
- Six backlit push buttons for quick control identification.
- Three 4-position rotary switches and one 12-position rotary switch.
- Two or three paddles depending on the selected configuration.
- Contactless Hall effect rotary switches and paddles.
- Custom front panel and project-specific quick release manufactured by XAP.
Technical Specifications and Integration
The GT-R communicates over CAN 2.0B at a baud rate from 128 kbit/s to 1 Mbit/s. XAP can support the mechanical integration and supply a quick release manufactured for the project.
Integration
The steering wheel accepts an 8 to 70 V supply. Its carbon fibre plate and aluminium body form the mechanical base of the product.
Technical specifications
| Specification |
Value |
| Paddles |
2 or 3 depending on the configuration, with contactless Hall effect technology |
| Rotary switches |
4 switches: 3 with 4 positions and 1 with 12 positions, with contactless Hall effect technology |
| Push buttons |
6 backlit push buttons |
| CAN communication |
CAN 2.0B, with or without termination depending on the configuration |
| CAN baud rate |
128 kbit/s to 1 Mbit/s |
| CAN protocol |
CANopen |
| USB |
1 USB Full Speed interface |
| Operating temperature |
−20 °C to 80 °C |
| Supply voltage |
8 to 70 V |
Mechanical specifications
| Specification |
Value |
| Rim diameter |
33 cm |
| Rim width |
10 cm |
| Materials |
Carbon fibre plate and aluminium body |
J1 connector pinout — PT451 07YS 12-10 P50
| Pin |
Signal |
| 1 |
Power supply |
| 2 |
CAN_H |
| 3 |
CAN_L |
| 4 |
USB_EXT_VBUS |
| 5 |
RADIO_1 |
| 6 |
RADIO_2 |
| 7 |
USB_EXT_DP |
| 8 |
USB_EXT_DM |
| 9 |
USB_EXT_GND |
| 10 |
GND |
Available options
| Option |
Function |
| 2- or 3-paddle configuration |
Adapt the controls to the functions required by the project |
| Front panel customisation |
Laser engraving of a logo, image or button labels on request |
| XAP-manufactured quick release |
Adapt the connection between the steering wheel and column to the project requirements |
XAP references
| Reference |
Description |
| PF0769 |
GT-R steering wheel — 3 paddles, 4 rotary switches and 6 backlit push buttons |
| PF0560 |
GT-R steering wheel — 2 paddles, 4 rotary switches and 6 backlit push buttons |
| PF0559 |
GT-R steering wheel — no paddles, 4 rotary switches, 6 backlit push buttons and starter harnesses |
Documentation
Technical data sheet available from XAP on request.
