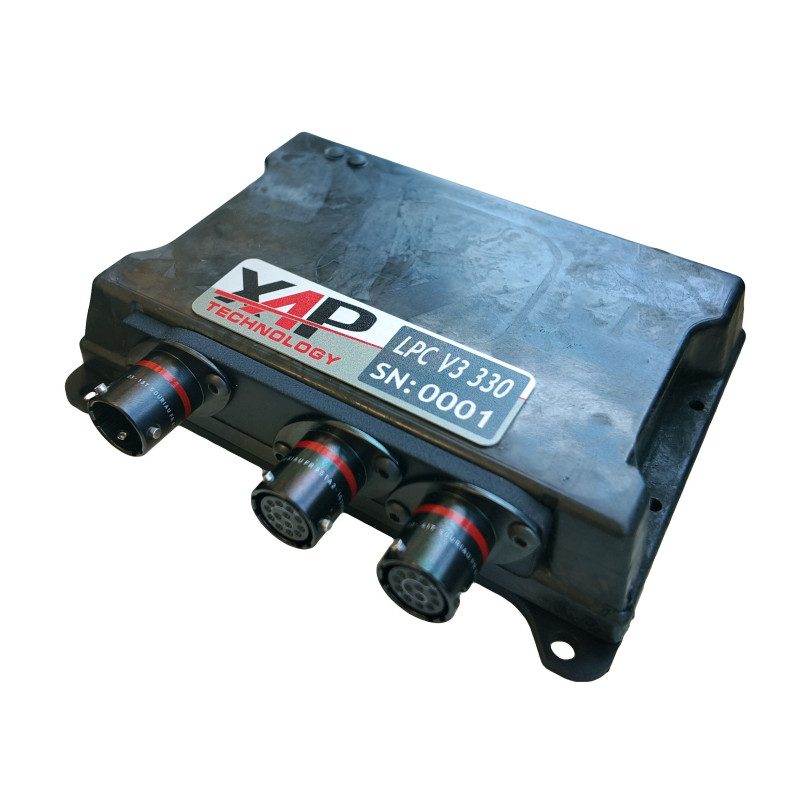

LED PANEL CONTROLLER (LPC) V3

LPC V3 LED Panel Controller – a dedicated CAN interface for position displays

The XAP Technology LPC V3 LED panel controller is the central component of a position display system designed in particular for competition vehicles. It connects the vehicle CAN network to the LED panels to display race position, car number or system status information. Its architecture separates system communication from the dedicated panel link.

The LPC controller independently manages the left and right panels while centralising their power supply and connection interfaces. This arrangement helps teams build a display suited to the vehicle, the applicable regulations and the information that must remain immediately visible.

XAP configures the CAN protocol, panel identifiers and display behaviour to suit each project. The USB connection supports controller programming and integration into the vehicle’s electronic architecture. Depending on the selected functions, the configuration can cover race position, car number, timing, alerts, animations, RGB colours and brightness.

The system combines the LPC controller with XAP LPP-130 LED position panels. XAP can also support connector selection and harness adaptation. The product is intended for motorsport, aerospace, marine, industrial and special-purpose environments.

Key benefits

  • Communication between the vehicle CAN network and the LED panels.
  • Two separate CAN lines: system network and dedicated panel network.
  • Independent CAN outputs for the left and right panels.
  • Panel power supply and interfaces centralised by the controller.
  • Configurable CAN protocol and USB programming.
  • Integration with XAP Technology LPP-130 LED panels.

Technical specifications and integration

The LPC controller sits between the vehicle CAN network and the LED panels. XAP can adapt the CAN configuration and connections to the project. The installer must identify the controller version before wiring: the pinout below applies exclusively to the LPC-330 V3.

Integration

The LPC accepts an 8 to 19 V supply and distributes the power required by the panels. It uses one CAN link for the system and a dedicated CAN link for the display, with separate connections to the right and left panels. The main LPC-330 V3 CT1 connector combines system CAN, four analogue inputs, USB, the power supply, grounds and a 5 V analogue supply. The CT2 and CT3 connectors combine panel power, two digital inputs, side identification and the CAN network dedicated to the panels.

Technical specifications
Specification Value
Supply voltage 8–19 V
Typical current Approximately 650 mA for the complete system (LPC + 2 panels)
CAN interfaces 2 × CAN 2.0B
CAN architecture System CAN + dedicated panel CAN
Panel outputs Independent left and right CAN channels
CAN protocol Fully configurable
Configuration USB connection and XAP DashEditor software
Temperature range −20 °C to 80 °C
LPC-330 V3 pinout – CT1 connector, 13 pins
Pin Signal Function / note
1 CAN1 LOW CAN 1
2 CAN1 HIGH CAN 1
3 USB − USB DATA −
4 USB + USB DATA +
5 AN1 Analogue input; connect to ground for use as a switch
6 AN2 Analogue input; connect to ground for use as a switch
7 AN3 Analogue input; connect to ground for use as a switch
8 AN4 Analogue input; connect to ground for use as a switch
9 USB VBUS USB power input
10 POWER SUPPLY 12 V
11 GND Ground
12 5V 5 V analogue supply, 100 mA
13 GND Ground

LPC-330 V3 CT1 connector: 13 positions, part number 8STA21035PN, supplied by SOURIAU, red.

LPC-330 V3 pinout – centre CT2 connector, 13 pins
Pin Signal Function / note
1 Power supply 12 V
2 SUPP2 Additional pin for other applications — not used
3 SUPP1 Additional pin for other applications — not used
4 DIG2 Digital input
5 DIG1 Digital input
6 GND Power ground
7 Side ID Panel side identification
8 CAN2 LOW Panel CAN communication
9 CAN2 HIGH Panel CAN communication
10 5V supply 5 V logic supply (µP)
11 SUPP3 Additional pin for other applications — not used
12 SUPP4 Additional pin for other applications — not used
13 SUPP5 Additional pin for other applications — not used

LPC-330 V3 centre CT2 connector: 13 positions, part number 8STA21035SN, supplied by SOURIAU, red.

LPC-330 V3 pinout – right CT3 connector, 13 pins
Pin Signal Function / note
1 Power supply 12 V
2 SUPP2 Additional pin for other applications — not used
3 SUPP1 Additional pin for other applications — not used
4 DIG2 Digital input
5 DIG1 Digital input
6 GND Power ground
7 Side ID Panel side identification
8 CAN2 LOW Panel CAN communication
9 CAN2 HIGH Panel CAN communication
10 5V supply 5 V logic supply (µP)
11 SUPP3 Additional pin for other applications — not used
12 SUPP4 Additional pin for other applications — not used
13 SUPP5 Additional pin for other applications — not used

LPC-330 V3 right CT3 connector: 13 positions, part number 8STA21035SN, supplied by SOURIAU, red.

XAP references
Reference Description
PF0856 Reference code printed in the supplied LPC-330 V3 pinout — product correspondence to be validated
PF0909 LPC-330 V3 LED panel controller — product mentioned in the presentation
PF0855 LPP-130 LED position panel — complementary system component

Documentation

View the official LPC V3 technical data sheet.

PF0909

Download
