DASH NT2R — CAN display and selection in a compact circular format

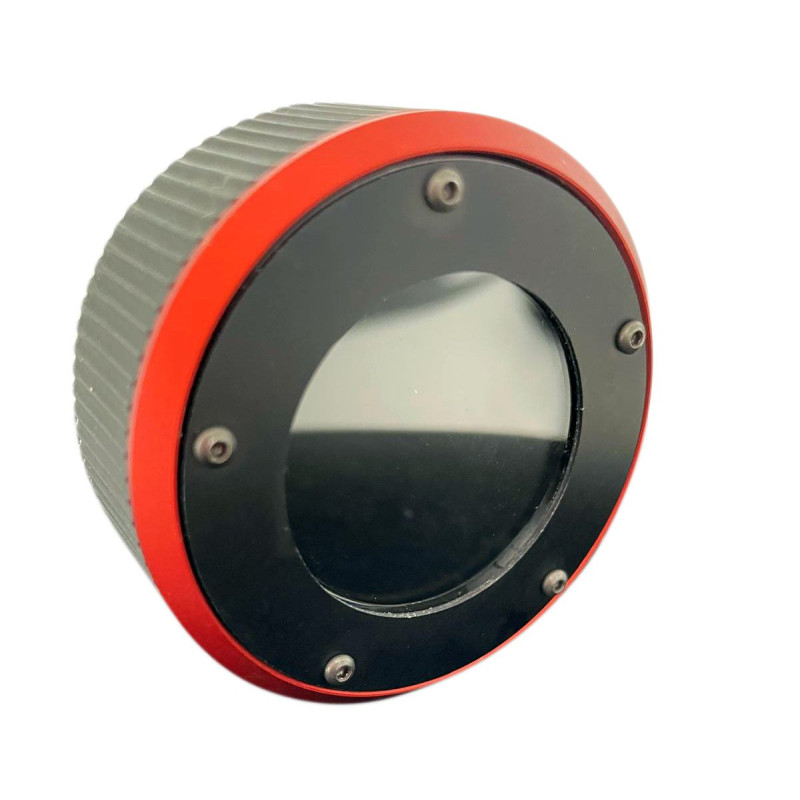

The XAP Technology DASH NT2R is a 1.3-inch circular display with an 18-position rotary control, designed for steering wheels, panels and embedded systems where space is limited. It combines visualisation, navigation and data feedback in an IP65 module. DashEditor and CAN/DBC mapping allow XAP to tailor pages and communication to the target vehicle or system.

Reduce switch count without losing information

The continuous 18-position control covers 360° and supports page scrolling, menu navigation and function selection. Its 240 × 240 px transflective TFT remains readable in sunlight and can show up to 32 screens.

The NT2R is compatible with DashEditor. The software lets users create a configuration from scratch or adapt an existing one, with the same screen, graphic object and alert management available on other XAP products. Maths and virtual channels enhance received data, while DBC support helps configure CAN communication with multiple ECUs.

The NT2R can be built into a steering wheel or fitted as a standalone panel device. It suits lightweight prototypes, single-seaters, embedded control systems and compact industrial or test panels. The associated Formula V4 steering wheel references support a wider XAP ecosystem around the module.

Key benefits

1.3-inch circular transflective TFT, 240 × 240 px and 65K colours.
Continuous 18-position rotary control.
1 CAN FD interface and USB programming.
Up to 32 screens, with graphic objects and alerts configurable in DashEditor.
8-position Amphenol LTW connector.
IP65 CNC-machined aluminium enclosure.

Technical specifications and integration

The DASH NT2R operates from 8 to 25 V, communicates over CAN or CAN FD and is programmed by USB. XAP can tailor the interface and DBC mapping to the project. The 8-position Amphenol LTW connector pinout is detailed below; before integration, the installer should verify the power supply, CAN termination and mounting constraints.

Integration

The module can be integrated into a steering wheel or installed as a standalone panel device. Its CNC-machined aluminium enclosure has confirmed overall dimensions of Ø 60 × 34 mm and a confirmed weight of 300 g. It provides IP65 ingress protection.

Technical specifications
Specification	Value
Power supply	8 to 25 V
Display	1.28-inch transflective, sunlight-readable TFT
Resolution	240 × 240 px; 65K colours
Number of screens	Up to 32
Rotary control	18 positions
CAN communication	1 CAN FD
Programming interface	USB
Connector	8-position Amphenol LTW
DashEditor configuration	Screens, graphic objects, alerts, graphic interface and labels
Compatibility	DBC-configurable CAN for multiple ECUs
Electromagnetic compatibility	Automotive EMC; exact normative reference not supplied

Mechanical specifications
Specification	Value
Dimensions	Ø 60 × 34 mm
Weight	300 g
Ingress protection	IP65
Operating temperature	−20 °C to 80 °C
Shock and vibration resistance	> 30 G RMS
Mounting	Steering wheel integration or standalone panel mounting
Enclosure	CNC-machined aluminium

J1 connector pinout — BD-08PMMP-LC7001
Pin	Signal
1	+12V_Alim
2	USB_HS_DM_OUT
3	USB_HS_DP_OUT
4	USB_HS_GND_OUT
5	GND
6	USB_HS_VBUS_OUT
7	CAN_L
8	CAN_H

XAP references

XAP references
Reference	Description
PF0833	NT2R rotary control and screen
PF0842	Formula FOV4S steering wheel
PF0876	Formula FOV4 steering wheel, small handles
PF0838	Formula FOV4 steering wheel, large handles
