PS0549
The XAP CMU is the guardian of your battery. It monitors each cell with high accuracy, ensuring balance, safety, and extended lifespan for your packs, whether for automotive retrofit, electric mobility, or stationary storage.
18-cell passive balancing module with isolated TPL communication and full traceability — built for industrial, marine, and heavy-duty battery systems up to 800 V.

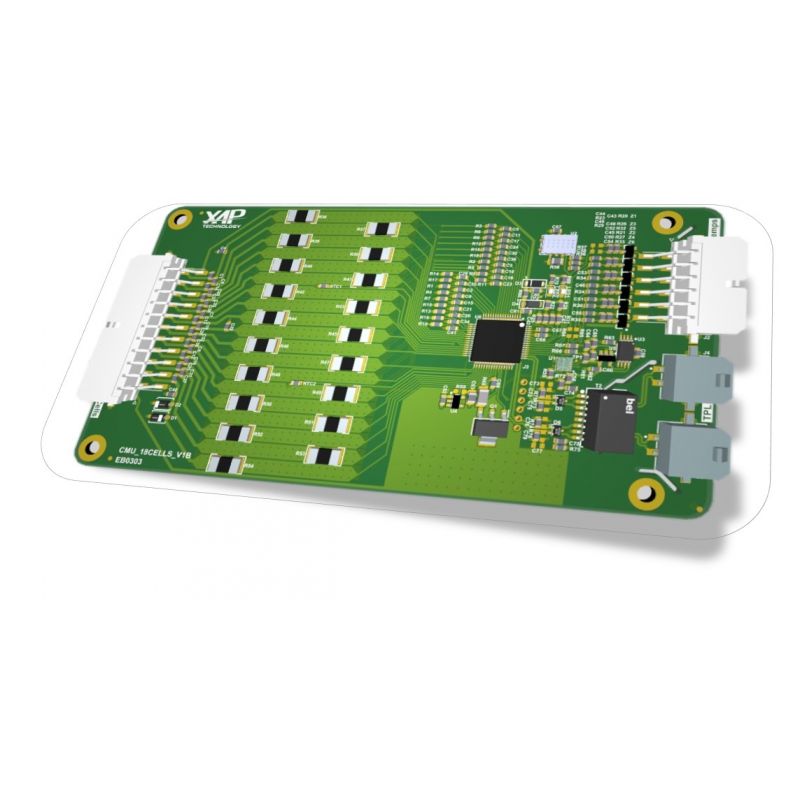

The CMU-118 enhances XAP’s modular BMS platform with a precise, 18-cell passive balancing architecture.
Each cell is monitored with ±2 mV accuracy, while galvanic isolation up to 3,000 V guarantees safe operation across logic, cell, and communication domains.
Equipped with MOSFET-controlled passive resistors (≈4.7 Ω / 3 W) and an advanced sequential balancing algorithm, the CMU-118 minimizes voltage deviation (<25 mV) for optimal pack stability.
Its isolated TPL communication bus ensures reliable data transfer with built-in CRC and watchdog protection, making it ideal for multi-module systems and retrofits.
With EEPROM-based traceability, complete protection suite (ESD, reverse polarity, transient surge), and long-term reliability over 13,000 hours, the CMU-118 is the perfect solution for industrial, marine, or high-voltage electric vehicles.
Industrial-grade robustness and motorsport-inspired reliability, delivering accurate measurements, safe isolation, and unmatched endurance for demanding energy systems.
