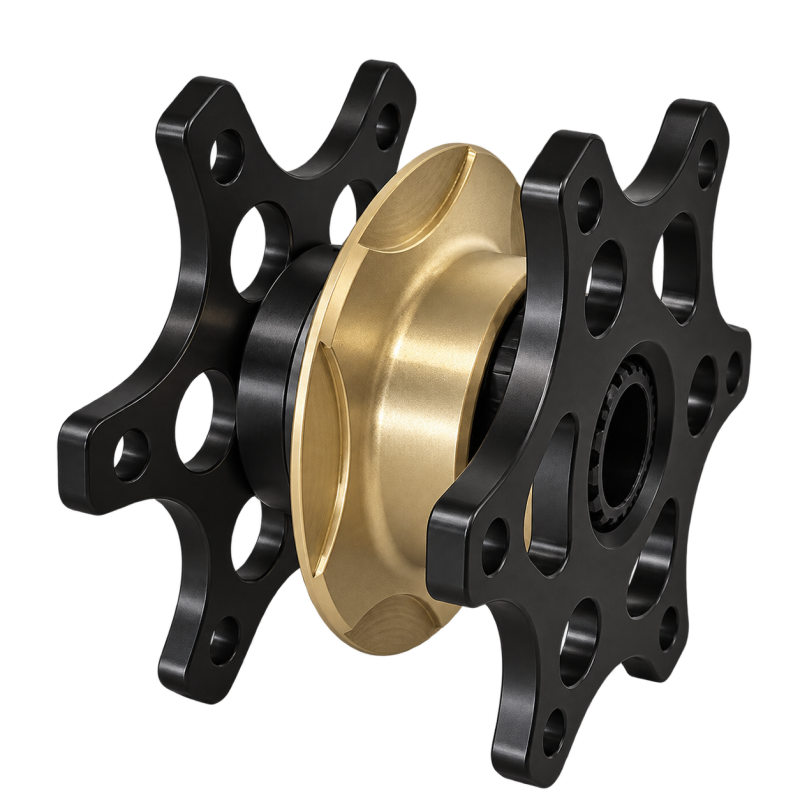

XAP COMPACT 6-POINT GT QUICK RELEASE KIT

XAP Compact GT Quick Release Kit: a compact solution for racing steering wheels

Drawing on nearly 30 years of expertise in designing and manufacturing Motorsport equipment, XAP offers its Compact 6-Point GT Quick Release Kit, combining two specifically compatible components:

• XAP Compact 6-Point GT Quick Release – ME0154
• XAP Compact GT Hub Shaft – MU1090

This kit provides both components of the mechanical connection between the steering wheel and steering column, eliminating the need to select the matching parts separately.

Its compact design makes it particularly suitable for GT racing steering wheels and standard-frame steering wheel applications.

Key features and benefits

• Compact design: 42.5 mm Quick Release length, minimising the space required for the steering wheel quick-release mechanism.
• Secure mechanical locking: redundant mechanism designed to prevent accidental release under vibration or mechanical loads.
• High machining precision: tolerances below 0.01 mm on the splined connection.
• Zero-play fit: no axial or radial play (0 µm), ensuring precise steering force transmission.
• Excellent angular repeatability: better than ±0.05° for accurate steering wheel repositioning.
• High mechanical strength: torque resistance exceeding 1,000 N·m.
• Instant removal: direct-pull release mechanism designed to maintain smooth operation after repeated use.
• 7075-T6 aluminium: combining low weight with high mechanical strength for the Quick Release body.
• Made in France: design, CNC machining, assembly and quality inspection carried out at XAP's facilities in Calvisson.

A kit combining two compatible components

The XAP Compact GT Quick Release Kit PF1026 combines the ME0154 Quick Release with its dedicated MU1090 hub shaft.

This combination provides the two components specifically designed to work together in the same configuration.

The compact Quick Release design facilitates integration into Motorsport applications where installation space is limited.

The redundant mechanical locking system and direct-pull release mechanism combine mechanical security with ease of use.

Kit contents:

• 1 × XAP Compact 6-Point GT Quick Release – ME0154
• 1 × XAP Compact GT Hub Shaft – MU1090

Mounting hardware and additional accessories are not included.

Technical specifications

The specifications below apply to the ME0154 Quick Release included in the kit.

XAP Technology – Designed and manufactured in France.
