MPC 17 – 250 A Power Distribution Module up to 75 V | XAP

MPC HP 17HS (4x50A, 6x25A, 7x10A)

Name: MPC HP 17HS (4x50A, 6x25A, 7x10A)
Brand: XAP TECHNOLOGY
SKU: PF0897

Technical sheet

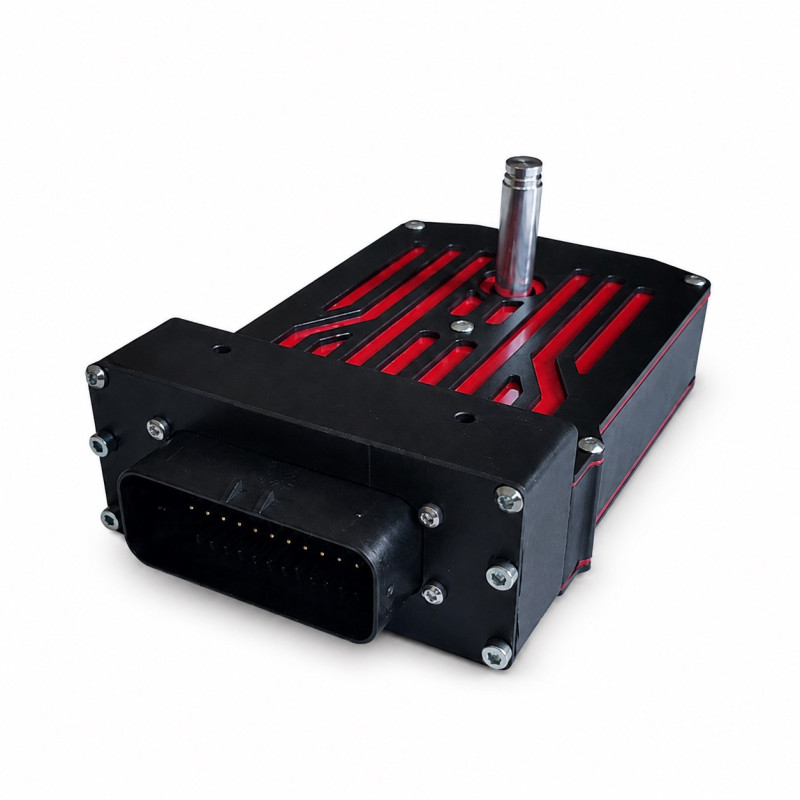

MPC 17HP — multi-voltage power distribution up to 250 A

The XAP Technology MPC 17HP is an electrical power distribution module designed for demanding motorsport, e-mobility and embedded applications. It centralises control of 8 to 75 V electrical networks and distributes up to 250 A in total. Integrated protections and soft start across all outputs help system integrators build a compact, configurable architecture tailored to each project.

The MPC 17HP manages several power levels within a single module: four 50 A high-side outputs, six 25 A high-side outputs and seven 7 A high-side outputs. The voltage applied at the input remains the voltage available at the outputs, allowing the module to be integrated into different electrical networks without implying any voltage conversion capability.

XAP combines the MPC 17HP with a central controller, the MPC CMD, to simplify integration into a custom electronic architecture. The module is suitable for motorsport, e-mobility, aeronautics, marine and advanced industrial projects.

Key features

Logic and power supply management up to 75 V.
Maximum total current of 250 A.
17 high-side outputs across three current levels.
Soft start and freewheeling diode protection on every output.
Overcurrent, undervoltage and overvoltage protection on every output.

Technical specifications and integration

The MPC 17HP combines power distribution, output protection and communication interfaces in a single module. XAP can support the definition of the electrical architecture and connections. The installer must size wiring and upstream protection for the actual current drawn by each load and validate network compatibility before power-up.

Integration

Connector J7, shown in the supplied pinout, groups the HP, MP and LP outputs, the command power supply and the CAN1 bus.

The MPC 17HP provides PWM control up to 100 Hz and two 50 A half-bridges for stepper motor control. Two LEDs indicate module status. Before installation, the integrator must validate the pinout revision, wire sizes, upstream protection, CAN termination and load compatibility.

Technical specifications
Specification	Value
Logic and power supply	Up to 75 V
Network voltage range	8 to 75 V; input voltage is output voltage
Maximum total current	250 A
50 A HP high-side outputs	4
25 A MP high-side outputs	6
7 A LP high-side outputs	7
50 A half-bridges	2 HP
PWM	Up to 100 Hz
Stepper motor control	Via 2 half-bridges
Freewheeling diode protection	All outputs
Overcurrent protection	All outputs
Undervoltage and overvoltage protection	All outputs
Status LEDs	2

Mechanical specifications
Specification	Value
Power module dimensions	160 × 100 × 44 mm
Power module weight	750 g

Connector J7 pinout — TE 1-776163-1
Pin	Signal
1	HP1
2	HP1
3	HP1
4	HP2
5	HP2
6	HP2
7	HP3
8	HP3
9	HP3
10	HP4
11	HP4
12	HP4
13	MP1
14	MP2
15	MP2
16	MP3
17	MP3
18	MP4
19	MP4
20	MP5
21	MP5
22	MP6
23	MP6
24	MP1
25	LP1
26	LP2
27	LP3
28	LP4
29	LP5
30	LP6
31	LP7
32	GND
33	Alim_CMD
34	CAN1_P
35	CAN1_N

XAP references
Reference	Description
PF0894	MPC-CMD — control unit
PF0897	MPC-17HS — module with 17 power outputs for the MPC system
PF0896	MPC-24LP — module with 24 low-power outputs for the MPC system
PF0895	MPC-6HB — module with 6 half-bridges, equivalent to 3 full bridges, for the MPC system
