GTC STEERING WHEEL - 2 PADDLES - 3 ROTARIES - 10 BUTTONS - WITHOUT QUICK RELEASE
Inscrivez-vous/connectez-vous pour voir nos tarifs

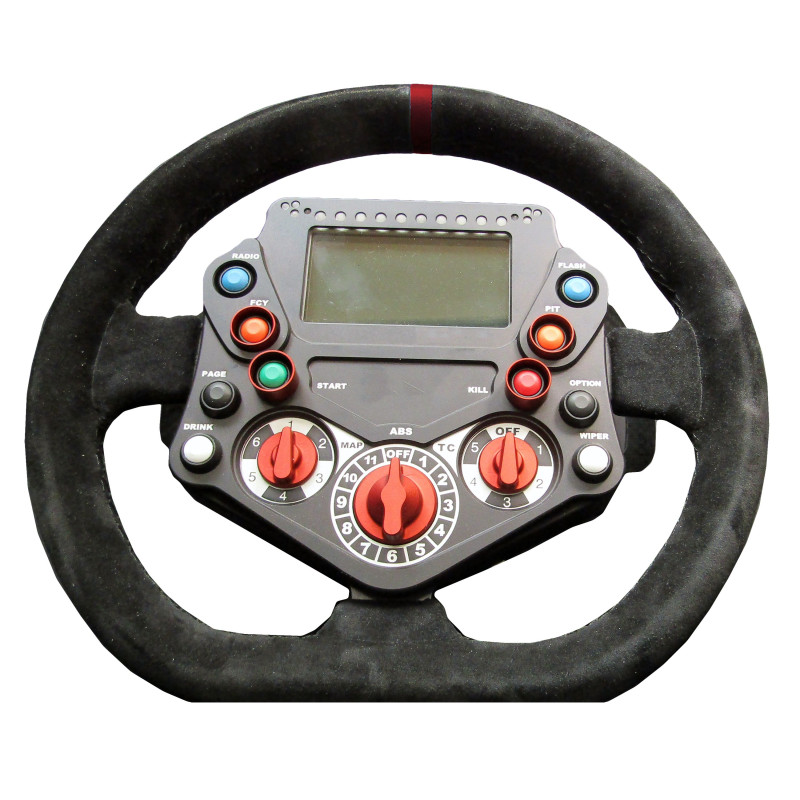

GTC steering wheel — configurable controls and display for circuit racing and rallying
The XAP Technology GTC steering wheel combines a 33 cm rim, a 4.3-inch display and accessible controls for manufacturers and teams competing on circuits or in rallies. Developed notably for Alpine Cup and Alpine Rallye environments, it brings key information and driver settings together. DashEditor allows integrators to build the display configuration from scratch or adapt an existing layout to suit the vehicle.
The GTC combines two paddles, ten push buttons and three rotary selectors. Two selectors provide four positions, while the third provides twelve, allowing the team to distribute settings clearly according to the functions defined for the project. This layout keeps essential controls around the rim and reduces the need for remote controls in the cockpit.
The ten push buttons make it easier to organise driver controls. The central display, ten RPM LEDs and six RGB alarm LEDs give the driver direct access to priority information. With DashEditor, the integrator can organise display pages, adapt an existing configuration and update the layout as the team’s requirements evolve.
Key features
- 33 cm rim designed for circuit racing and rally applications.
- Two paddles and three rotary selectors for driver settings.
- Ten push buttons for centralising essential controls.
- Two 4-position selectors and one 12-position selector.
- 4.3-inch display, 10 RPM LEDs and 6 RGB alarm LEDs.
- Customisable display with DashEditor, based on a new or existing configuration.
Technical specifications and integration
The GTC brings its interfaces together on the J1 PT451 07YS 12-10 P50 connector. XAP makes display customisation straightforward with DashEditor, while the integrator can adapt the power supply, CAN and radio connections to the vehicle architecture.
Integration
The pinout below identifies every physical connection on connector J1. Before installation, validate the supply voltage, wiring, protection, CAN termination and baud rate, radio signal specifications, USB harness, mechanical mounting and compatibility of all connected equipment.
| Specification | Value |
|---|---|
| Display | 4.3 inches |
| Paddles | 2 paddles |
| Push buttons | 10 push buttons |
| Rotary selectors | 3 selectors: 2 four-position selectors and 1 twelve-position selector |
| RPM LEDs | 10 |
| RGB alarm LEDs | 6 |
| J1 connector interfaces | Power supply, CAN, USB, radio signals and grounds |
| Configuration software | DashEditor: create a display configuration from scratch or adapt an existing configuration |
| Supply voltage | 8.5 to 18.5 V |
| Operating temperature range | −20 °C to 80 °C |
| Specification | Value |
|---|---|
| Rim diameter | 33 cm |
| Applications | Circuit racing and rallying, notably Alpine Cup and Alpine Rallye |
| Connector | J1 — PT451 07YS 12-10 P50 |
| Front panel | Manufactured entirely by XAP; customisable with a laser-engraved logo or image |
| Pin | Signal |
|---|---|
| 1 | Power supply |
| 2 | CAN_H |
| 3 | CAN_L |
| 4 | USB_EXT_VBUS |
| 5 | RADIO_1 |
| 6 | RADIO_2 |
| 7 | USB_EXT_DP |
| 8 | USB_EXT_DM |
| 9 | USB_EXT_GND |
| 10 | GND |
| Reference | Description |
|---|---|
| PF0449 | GTC steering wheel — 2 paddles, 10 push buttons and 3 rotary selectors |
Documentation
Technical datasheet available from XAP on request.
PF0449
